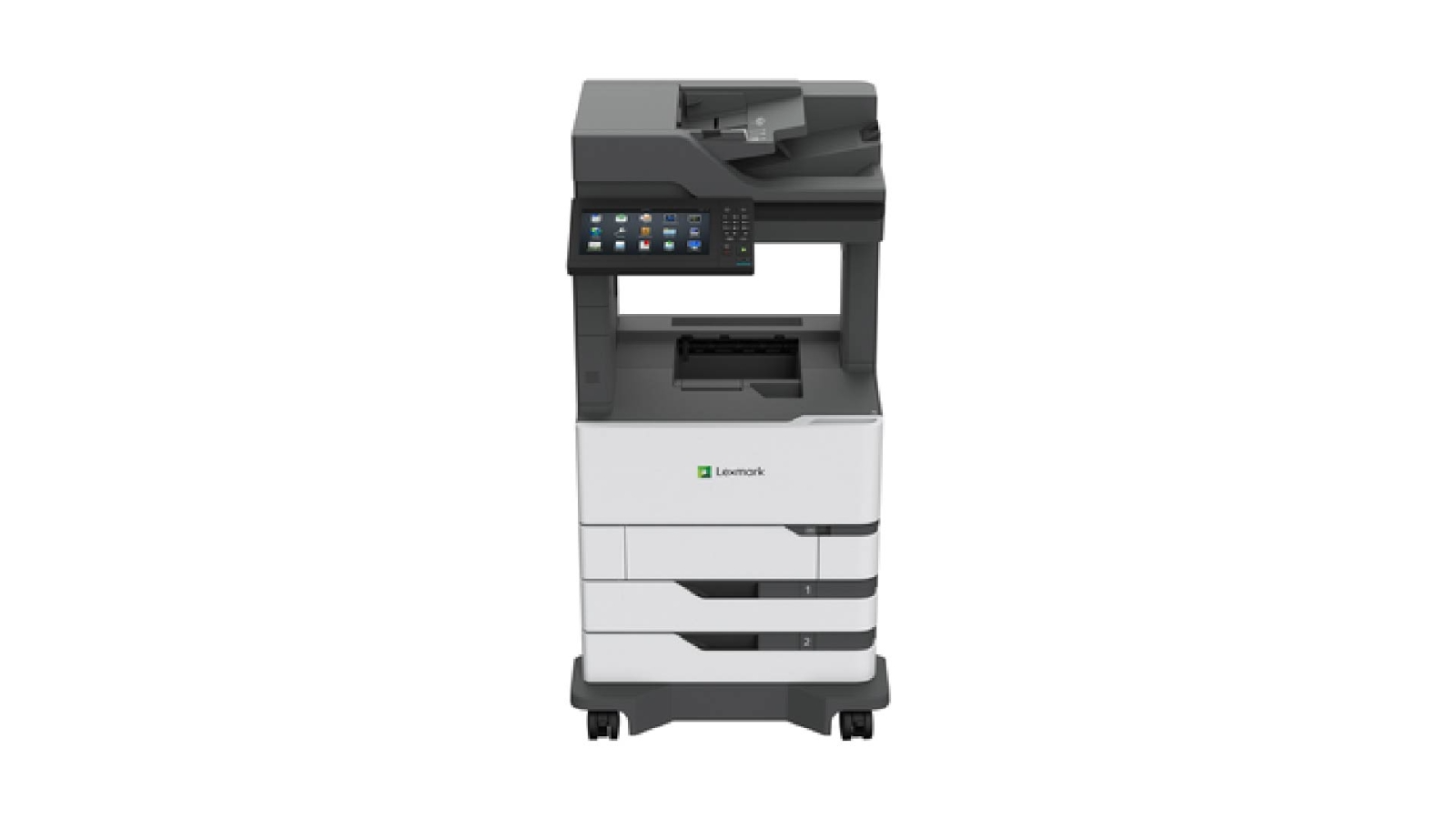

With output up to 70 ppm, long-life imaging components, Ultra High Yield toner capacity, a range of finishing and output options, and up to 2,750 sheets of standard input, the MX820 Series is Lexmark’s large-workgroup monochrome leader in multifunction products.
| MAIN SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| Model | MX822ade | MX826ade | ||||
| Display | Lexmark e-Task 10-inch (25 cm) class colour touch screen | |||||
| Memory | Standard: 2,048 MB / Maximum: 6,144 MB | |||||
| Hard Disk Drive | Included in configuration | |||||
| Standard Ports | One Internal Card Slot, USB 2.0 Specification Hi-Speed Certified (Type B), Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Two Rear USB 2.0 Specification Hi-Speed Certified ports (Type A) | |||||
| Optional Network Ports / Optional Local Ports | Marknet N8370 WiFi Option, MarkNet N8230 Fiber Ethernet Print Server, Marknet N8372 WiFi Option / Internal RS-232C serial, Internal 1284-B Bidirectional Parallel | |||||
| Laser Cartridge Yields: Up to | 7,500-page Cartridge, 15,000-page High Yield Cartridge, 35,000-page Extra High Yield Cartridge, 55,000-page Ultra High Yield Cartridge | |||||
| Imaging Unit Estimated Yield: Up to | 150,000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage | |||||
| Cartridge(s) Shipping with Product | 11,000-page Starter Return Program Toner Cartridge | |||||
| Included Paper Handling | 100-Sheet Multipurpose Feeder, 550-Sheet Output Bin, Integrated Duplex, 2 x 550-Sheet Tray | 550-Sheet Input, 100-Sheet Multipurpose Feeder, 550-Sheet Output Bin, Integrated Duplex, 550-Sheet Tray | ||||
| Optional Paper Handling | 550-Sheet Tray, 4-Bin Mailbox, Offset Stacker, Staple Finisher, Staple Punch Finisher, 2,100-Sheet Tray (must remove 1,550-Sheet Tray) | |||||
| Paper Input Capacity: Up to | Standard | 1,200 pages 75 gsm bond | ||||
| Maximum | 2,300 pages 75 gsm bond | |||||
| Paper Output Capacity: Up to | Standard | 550 pages 75 gsm bond | ||||
| Maximum | 1,050 pages 75 gsm bond | |||||
| Media Types Supported | Card Stock, Dual Web Labels, Envelopes, Integrated Labels, Paper Labels, Plain Paper, Transparencies, Refer to the Paper & Specialty Media Guide | |||||
| Media Sizes Supported | 10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5, B5 Envelope, C5 Envelope, DL Envelope, Executive, Folio, JIS-B5, Legal, Letter, Statement, Universal, Oficio, A6 | |||||
| Recommended Monthly Page Volume | 3,000 – 50,000 pages | 5,000 – 100,000 pages | ||||
| Maximum Monthly Duty Cycle: Up to | 300,000 pages per month | 350,000 pages per month | ||||
| Dimensions (W x D x H) | 685.8 x 693.42 x 1150.62 mm | |||||
| Weight | 66.95 kg | |||||
| PRINT SPECIFICATIONS | ||||||
| Model | MX822ade | MX826ade | ||||
| Print Speed: Up to | Black | 55 ppm | 70 ppm | |||
| Time to First Page: As fast as | Black | 4.5 seconds or less | 4.0 seconds or less | |||
| Print Resolution (dpi) | Black | 1,200 Image Quality (1,200 x 600 dpi), 1,200 x 1,200 dpi, 2,400 Image Quality (2,400 x 600 dpi), 300 x 300 dpi, 600 x 600 dpi |
||||
| COPY SPECIFICATIONS | ||||||
| Model | MX822ade | MX826ade | ||||
| Copy Speed: Up to | Black | 55 cpm | 70 cpm | |||
| Time to First Copy: As fast as | Black | 4.5 seconds or less | 4.0 seconds or less | |||
| SCAN SPECIFICATIONS | ||||||
| Model | MX822ade | MX826ade | ||||
| Scanner Type / ADF Scan | Flatbed scanner with ADF / DADF (single pass Duplex) | |||||
| A4 / Ltr Duplex Scan Speed: Up to | Black | 144 / 150 sides per minute | ||||
| Colour | 144 / 150 sides per minute | |||||
| A4 / Ltr Simplex Scan Speed: Up to | Black | 72 / 75 sides per minute | ||||
| Colour | 72 / 75 sides per minute | |||||
| ADF Paper Input Capacity: Up to | 200 pages 75 gsm bond | |||||
| FAX SPECIFICATIONS | ||||||
| Model | MX822ade | MX826ade | ||||
| Modem Speed | Max is 33.6 Kbps, V.34 Half-Duplex Kbps | |||||
